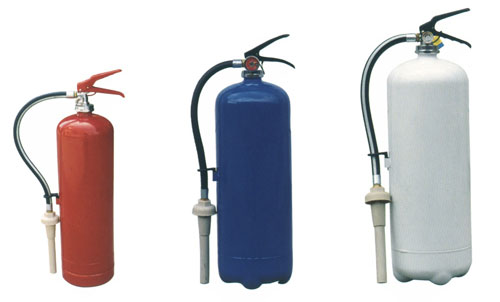

DL03E-001 DL03E-002 DL03E-003 |
| DL03E FOAM FIRE EXTINGUSHER |
| ITEM |
3L |
6L |
9L |
| Item NO. |
DL03E-001 |
DL03E-002 |
DL03E-003 |
| Out-diameter(mm) |
φ130 |
φ180 |
φ180 |
| Cylinder length(mm) |
350 |
410 |
520 |
| Cylinder weight(kg) |
1.5 |
2.9 |
3.7 |
| Extinguisher weight(kg) |
5 |
9.5 |
13.2 |
| Working pressure(bar) |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
| Min wall-thickness(mm) |
1.14 |
1.3 |
1.3 |
| Material |
St12 |
St12 |
St12 |
|
DL03E-004 DL03E-005 DL03E-006 DL03E-007 |
| DL03E FOAM FIRE
EXTINGUSHER WITH STAINLESS-ALLOY CYLINDER |
| ITEM |
3L |
4L |
6L |
9L |
| Item NO. |
DL03E-004 |
DL03E-005 |
DL03E-006 |
DL03E-007 |
| Out-diameter(mm) |
φ130 |
φ130 |
φ180 |
φ180 |
| Cylinder length(mm) |
350 |
450 |
410 |
540 |
| Cylinder weight(kg) |
1.5 |
1.8 |
2.3 |
2.9 |
| Extinguisher weight(kg) |
4.8 |
6.3 |
8.8 |
12.5 |
| Working pressure(bar) |
12 |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
25 |
| Min wall-thickness(mm) |
1 |
1.2 |
1.2 |
1.5 |
| Material |
304 |
304 |
304 |
304 |
|
