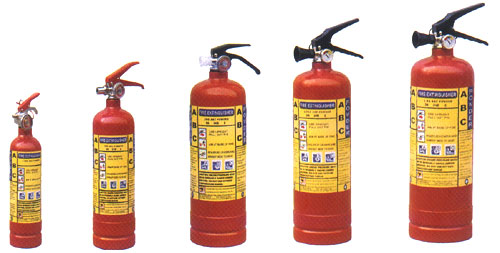

DL02E-1 DL02E-2 DL02E-3 DL02E-4 DL02E-5
|
| DL02E DRY POWDER FIRE EXTINGUSHER |
| ITEM |
0.5kg |
1kg |
2kg |
2.3kg |
3kg |
| Item NO. |
DL02E-1 |
DL02E-2 |
DL02E-3 |
DL02E-4 |
DL02E-5 |
| Out-diameter(mm) |
φ74 |
φ85 |
φ110 |
φ110 |
φ130 |
| Volume(l) |
0.63 |
1.25 |
2.5 |
2.88 |
3.75 |
| Cylinder length(mm) |
210 |
270 |
310 |
355 |
410 |
| Cylinder weight(kg) |
0.4 |
0.56 |
1.18 |
1.31 |
1.27 |
| Extinguisher weight(kg) |
1.4 |
1.75 |
3.5 |
4.05 |
4.5 |
| Dry powder filled
weight(kg) |
0.5 |
1 |
2 |
2.3 |
3 |
| Working pressure(bar) |
12 |
12 |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
25 |
25 |
| Min wall-thickness(mm) |
0.75 |
0.79 |
1.07 |
1.07 |
1.14 |
| Material |
St14 |
St14 |
St14 |
St14 |
St14 |
| Fire
class |
ABC |
3A21BC |
5A21BC |
8A34BC |
8A34BC |
8A55BC |
| BC |
21BC |
21BC |
34BC |
34BC |
55BC |
| Packing size(cm) |
9*9*30 |
10*10*36 |
13*13*40 |
13*13*45 |
15*15*50 |
|

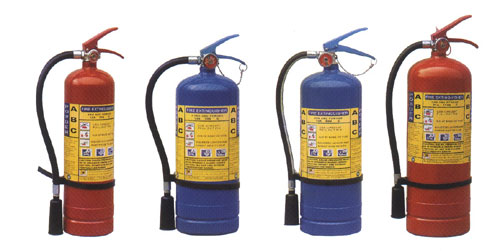

DL02E-6 DL02E-7 DL02E-8 DL02E-9 |
| DL02E DRY POWDER
FIRE EXTINGUSHER |
| ITEM |
4kg |
4.5kg |
5kg |
6kg |
| Item NO. |
DL02E-6 |
DL02E-7 |
DL02E-8 |
DL02E-9 |
| Out-diameter(mm) |
φ130 |
φ150 |
φ150 |
φ160 |
| Volume(l) |
4.5 |
5.65 |
6.25 |
7.5 |
| Cylinder length(mm) |
430 |
375 |
405 |
450 |
| Cylinder weight(kg) |
1.55 |
2.1 |
2.23 |
2.44 |
| Extinguisher weight(kg) |
5.9 |
7.2 |
7.65 |
8.85 |
| Dry powder filled
weight(kg) |
4 |
4.5 |
5 |
6 |
| Working pressure(bar) |
12 |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
25 |
| Min wall-thickness(mm) |
1.14 |
1.2 |
1.2 |
1.24 |
| Material |
ST14 |
ST14 |
ST14 |
ST14 |
| Fire
size(cm) |
ABC |
13A70BC |
13A70BC |
13A89BC |
21A113BC |
| BC |
70BC |
70BC |
89BC |
113BC |
| Packing size(cm) |
15*15*52 |
17*17*47 |
17*117*50 |
18*18*55 |
|
