DL02E-10 DL02E-11 DL02E-12 DL02E-13 |

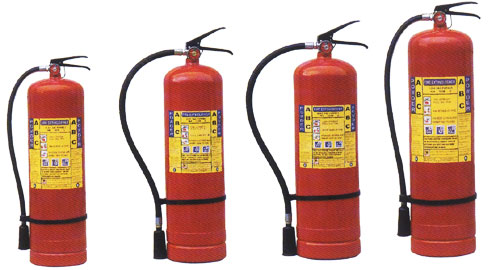

| DL02E DRY POWDER FIRE EXTINGUSHER |
| ITEM |
8kg |
9kg |
10kg |
12kg |
| Item NO. |
DL02E-10 |
DL02E-11 |
DL02E-12 |
DL02E-13 |
| Out-diameter(mm) |
φ163 |
φ180 |
φ180 |
φ180 |
| Volume(l) |
10 |
11.25 |
12.5 |
15 |
| Cylinder length(mm) |
510 |
510 |
565 |
645 |
| Cylinder weight(kg) |
4.39 |
4.58 |
4.95 |
5.2 |
| Extinguisher weight(kg) |
13.1 |
14 |
15.5 |
17.8 |
| Dry powder filled
weight(kg) |
8 |
9 |
10 |
12 |
| Working pressure(bar) |
12 |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
25 |
| Min wall-thickness(mm) |
1.25 |
1.3 |
1.3 |
1.3 |
| Material |
St14 |
St14 |
St14 |
St14 |
| Fire
class |
ABC |
21A113BC |
27A1544BNC |
34A144BC |
43A183BC |
| BC |
113BC |
144BC |
144BC |
183BC |
| Packing size(cm) |
18.5*18.5*60 |
21*21*60 |
21*21*66 |
21*21*74 |
|
DL02E-14 DL02E-15 DL02E-16 |

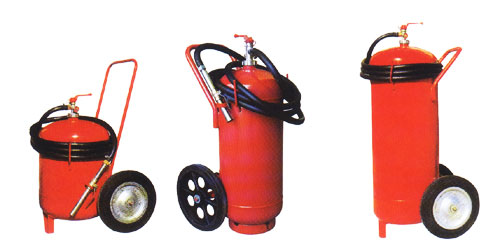

| DL02E WHEELED
DRY POWDER FIRE EXTINGUSHER |
| ITEM |
25kg |
35kg |
50kg |
| Item NO. |
DL02E-14 |
DL02E-15 |
DL02E-16 |
| Out-diameter(mm) |
φ320 |
φ320 |
φ320 |
| Volume(l) |
30 |
41 |
59 |
| Cylinder length(mm) |
500 |
640 |
940 |
| Cylinder weight(kg) |
29.7 |
33 |
40 |
| Extinguisher weight(kg) |
65 |
78 |
100 |
| Dry powder filled
weight(kg) |
25 |
25 |
25 |
| Working pressure(bar) |
15 |
15 |
15 |
| Test pressure(bar) |
25 |
25 |
25 |
| Min wall-thickness(mm) |
3 |
3 |
3 |
| Material |
St14 |
St14 |
St14 |
| Packing size(mm) |
435*445*835 |
420*400*870 |
530*470*920 |
|
