DL02E-28 DL02E-29 DL02E-30 |

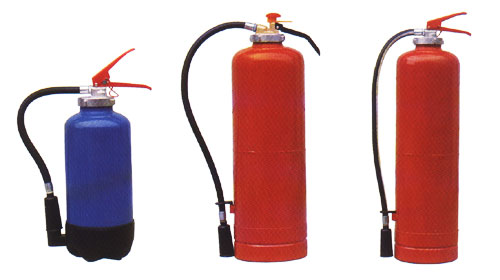

| DL02E STORE GAS DRY POWDER FIRE
EXTINGUSHER |
| ITEM |
4kg |
6kg |
12kg |
| Item NO. |
DL02E-28 |
DL02E-29 |
DL02E-30 |
| Out-diameter(mm) |
φ130 |
φ160 |
φ180 |
| Volume(l) |
5 |
7.5 |
15 |
| Cylinder length(mm) |
430 |
450 |
645 |
| Cylinder weight(kg) |
1.55 |
2.5 |
5.2 |
| Extinguisher weight(kg) |
6.7 |
8.7 |
17.5 |
| Dry powder filled
weight(kg) |
4 |
6 |
12 |
| Working pressure(bar) |
1.14 |
1.24 |
1.3 |
| Material |
St14 |
St14 |
St14 |
| Packing size(cm) |
15*15*52 |
18*18*55 |
21*21*74 |
|
DL02E-31 DL02E-32 |

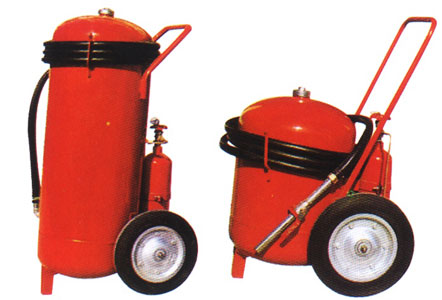

| DL02E WHEELED
POWDER FIRE EXTINGUSHER WITH CARTRIDGE |
| MODEL NO. |
DL02E-31 |
DL02E-32 |
| CAPACITY |
50kg |
100kg |
| HOSELENGTH |
5M |
5M |
| OVERALL HEIGHT |
940mm |
1156mm |
| OVERALL WIDTH |
4340mm |
5200mm |
| TATOL WEIGHT |
100kgs |
170kgs |
| CYLINDER MATERIAL |
MILD
SSTEEL |
|
