DL02E-22 DL02E-23 DL02E-24 |

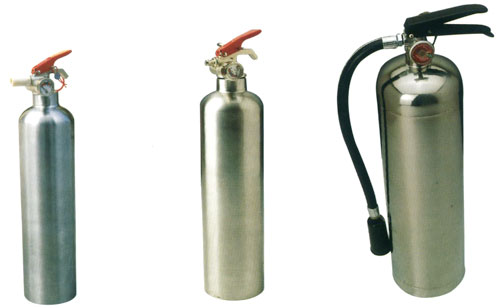

| DL02E DRY POWDER FIRE EXTINGUSHER
WITH STAINLESS-ALLOY CYLINDER |
| ITEM |
1kg |
2kg |
4kg |
| Item NO. |
DL02E-22 |
DL02E-23 |
DL02E-24 |
| Out-diameter(mm) |
φ75(85) |
φ100(108) |
φ130 |
| Volume(l) |
1.25 |
2.5 |
4.5 |
| Cylinder length(mm) |
285 |
325 |
450 |
| Cylinder weight(kg) |
0.55 |
1.1 |
1.8 |
| Extinguisher weight(kg) |
2.1 |
3.6 |
6.3 |
| Dry powder filled
weight(kg) |
1 |
2 |
4 |
| Working pressure(bar) |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
| Min wall-thickness(mm) |
0.8 |
1 |
1.2 |
| Material |
304 |
304 |
304 |
| Packing size(cm) |
9*9*38 |
11.5*11.5*42 |
15*15*55 |
|
DL02E-25 DL02E-26 DL02E-27 |
| DL02E HANGING
DRY POWDER FIRE EXTINGUSHER |
| ITEM |
6kg |
10kg |
12kg |
| Item NO. |
DL02E-25 |
DL02E-26 |
DL02E-27 |
| Out-diameter(mm) |
φ160 |
φ180 |
φ180 |
| Volume(l) |
7.3 |
12.2 |
14.65 |
| Cylinder length(mm) |
440 |
580 |
635 |
| Cylinder weight(kg) |
2.4 |
5 |
5.6 |
| Extinguisher weight(kg) |
10.7 |
17.5 |
20.5 |
| Dry powder filled
weight(kg) |
6 |
10 |
12 |
| Min wall-thickness(mm) |
1.24 |
1.3 |
1.3 |
| Material |
St14 |
St14 |
St14 |
| Packing size(cm) |
28*18*48 |
31*20*60 |
31*20*66 |
|
