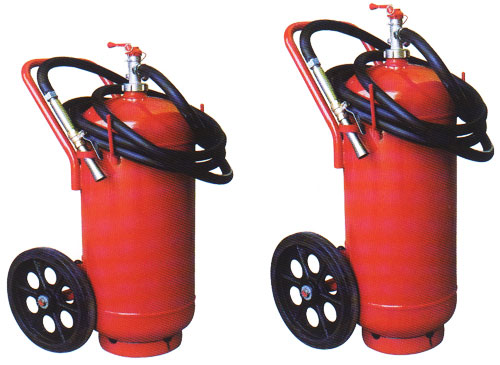

DL02E-17 DL02E-18 |
| DL02E WHEELED DRY POWDER FIRE EXTINGUSHER |
| ITEM |
75kg |
100kg |
| Item NO. |
DL02E-17 |
JX06-18 |
| Out-diameter(mm) |
φ406 |
φ406 |
| Volume(l) |
88.5 |
125 |
| Cylinder length(mm) |
866 |
1156 |
| Cylinder weight(kg) |
52 |
60 |
| Extinguisher weight(kg) |
137 |
170 |
| Dry powder filled
weight(kg) |
75 |
100 |
| Working pressure(bar) |
15 |
15 |
| Test pressure(bar) |
25 |
25 |
| Min wall-thickness(mm) |
3 |
3 |
| Material |
St14 |
St14 |
| Packing size(mm) |
420*400*1100 |
630*530*1180 |
|

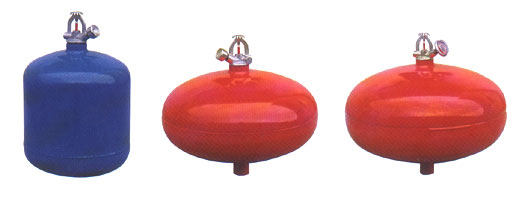

DL02E-19 DL02E-20 DL02E-21 |
| DL02E HANGING
DRY POWDER FIRE EXTINGUSHER |
| ITEM |
4.5kg |
6kg |
12kg |
| Item NO. |
DL02E-19 |
DL02E-20 |
DL02E-21 |
| Out-diameter(mm) |
φ150 |
φ300 |
φ340 |
| Volume(l) |
5.5 |
7.3 |
14.6 |
| Cylinder length(mm) |
260 |
215 |
240 |
| Cylinder weight(kg) |
2 |
2.7 |
4.2 |
| Extinguisher weight(kg) |
6.8 |
9 |
16.8 |
| Dry powder filled
weight(kg) |
4.5 |
6 |
12 |
| Working pressure(bar) |
12 |
12 |
12 |
| Test pressure(bar) |
25 |
25 |
25 |
| Min wall-thickness(mm) |
1.3 |
1.3 |
1.3 |
| Material |
St14(08AL) |
St14(08AL) |
St14(08AL) |
| Packing size(cm) |
16.5*16.5*30 |
32*32*28 |
36*36*30 |
|
