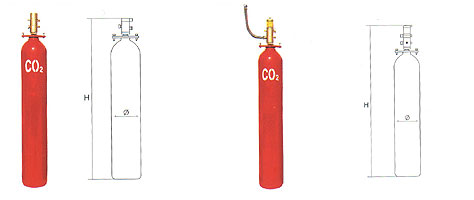

DL03S-001 DL03S-002 |
| DL03S CARBON DIOXIDE SYSTEM CYLINDERS
WITH ACCESSORIES |
| MODEL
NO. |
CAPACITY(L) |
Co2(kg) |
WEIGHT(KG) |
MPa |
φ(mm) |
HEIGHT(mm) |
OUTLET |
(m) |
| DL03S-001 |
70 |
45 |
133 |
15 |
267 |
1690 |
M30×1.5 |
6 |
| DL03S-002 |
40 |
25 |
85 |
15 |
219 |
1480 |
M30×1.5 |
5 |
|
DL03S-003 |
| DL03S HFC-227（FM200）SYSTEM
CYLINDERS WITH ACCESSORIES |
| MODEL
NO. |
CAPACITY(L) |
20℃(MPa) |
φ(mm) |
H(mm) |
W(kg) |
OUTLET |
(mm) |
(m) |
(kg) |
| DL03S003 |
180 |
2.5 |
512 |
1440 |
125 |
2-M64×2 |
65 |
6 |
<5 |
| DL03S003 |
150 |
458 |
1440 |
79 |
M64×2 |
50 |
5.5 |
<5 |
| DL03S003 |
120 |
407 |
1390 |
68 |
M64×2 |
50 |
4.5 |
<4.5 |
| DL03S003 |
100 |
407 |
1280 |
59 |
M52×2 |
40 |
4 |
<3.5 |
| DL03S003 |
90 |
327 |
1530 |
52 |
M52×2 |
40 |
3.5 |
<3 |
| DL03S003 |
60 |
327 |
1180 |
41 |
M52×2 |
40 |
3 |
<3 |
|
