DL01E-024 DL01E-025 DL01E-026 |

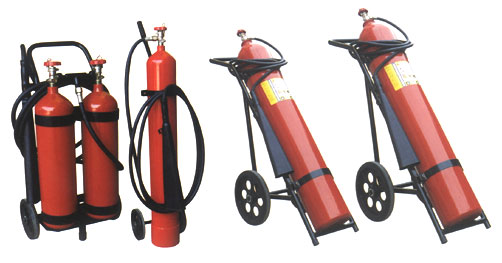

| DL01E WHEELED CO2 FIRE EXTINGUISHER |
| ITEM |
10kg |
20kg |
25kg |
| Item NO. |
DL01E-024 |
DL01E-025 |
DL01E-026 |
| Out-diameter(mm) |
φ152 |
φ219 |
φ219 |
| Volume(l) |
15 |
33.5 |
40 |
| Cylinder length(mm) |
1070 |
1160 |
1360 |
| Cylinder weight(kg) |
22.4 |
49 |
56 |
| Extinguisher weight(kg) |
42 |
106.4 |
114.4 |
| CO2 filled weight(kg) |
10 |
20 |
25 |
| Working pressure(bar) |
150 |
150 |
150 |
| Tes tpressure(bar) |
225 |
225 |
225 |
| Min wall-thickness(mm) |
5.5 |
5.7 |
5.7 |
| Material |
CK45 |
34Mn2V |
34Mn2V |
| Packing size(cm) |
30*28*120 |
70*48*150 |
65.5*48*156 |
|
DL01E-027 DL01E-028 |

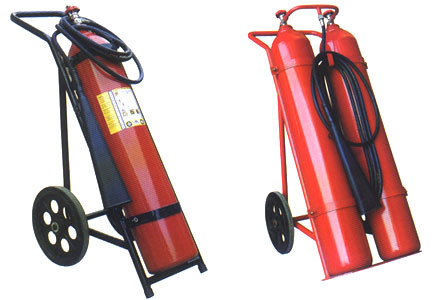

| DL01E PORTABLE
CO2 FIRE EXTINGUISHER(ALUMINIUMALLOY) |
| ITEM |
30kg |
50kg(Two Cylinders) |
| Item NO. |
DL01E-027 |
DL01E-028 |
| Out-diameter(mm) |
φ232 |
φ219 |
| Volume(l) |
48 |
60 |
| Cylinder length(mm) |
1400 |
1360 |
| Cylinder weight(kg) |
57 |
102 |
| Extinguisher weight(kg) |
130 |
195 |
| CO2 filled weight(kg) |
30 |
50 |
| Working pressure(bar) |
150 |
150 |
| Tes tpressure(bar) |
250 |
250 |
| Min wall-thickness(mm) |
5.7 |
5.7 |
| Material |
34Mn2V |
34Mn2V |
| Packing size(cm) |
64*46*150 |
65.5*95*156 |
|
